Swimming pool salt water chlorinator
1.Detailed Product Description:
-Easy to read Digital Displsy.
-Simple switch between manual and automatic operation.
-Clear LED Operation.
-Complete Output Control.
-Full diagnostic Display.
2. Saltwater solutions:
Salt chlorinators,are an alternative means of sanitizing your pool with chlorine using the process of electrolysis.
The electrolysis process is achieved by passing the salt water solution through an electroytic cell which converts sodium chloride(salt) in the water into chlorine gas which,when dissolved in water become sodium hypochlorite(liquid chlorine).
Safe and respecting the environment,this technology brings you:
-Relaxation: Your pool is automatically disinfected.
-Safety: Reduction in chlorine storageand handling.
-Comfort: Clean,safe and crystal-clear water.
-Health and well-being: Therapeutic,saltwater does not irritate eyes and dry out skin.
3. Feature:
- 3 models to choose:15,25,50g/hr.
- Self cleaning reverse polarity.
- Quality titanium cells.
- Light transformer models.
- Maximum working pressure:250kpa/36psi/2.5bar.
4. Technical characteristics:
|
Model No.
|
Descripition
|
Salt Level
(min)
|
Cell Output
|
Fiberglass Pool
(Litres)
|
Concrete Pool
(Litres)
|
Pool Light
Voltage
|
Input Voltage
/Freq.
|
IP Rating
|
Weight
(kg)
|
|
SSC15-E
|
Standard Version
|
4000PPM
|
15gram/h
|
50,000
|
45,000
|
N/A
|
240V AC
50/60Hz
|
IPX4
|
6.5
|
|
SSC25-E
|
25gram/h
|
75,000
|
70,000
|
7.4
|
|
SSC50-E
|
45gram/h
|
120,000
|
110,000
|
9.7
|
|
SSC15-T
|
With Time Clock
|
15gram/h
|
50,000
|
45,000
|
N/A
|
240V AC
50/60Hz
|
IPX4
|
6.6
|
|
SSC25-T
|
25gram/h
|
75,000
|
70,000
|
7.5
|
|
SSC50-T
|
45gram/h
|
120,000
|
110,000
|
9.8
|
|
SSC15-TLT
|
With Time Clock
& pool light transformer
|
15gram/h
|
50,000
|
45,000
|
12V AC
|
240V AC
50/60Hz
|
IPX4
|
8.4
|
|
SSC25-TLT
|
25gram/h
|
75,000
|
70,000
|
8.8
|

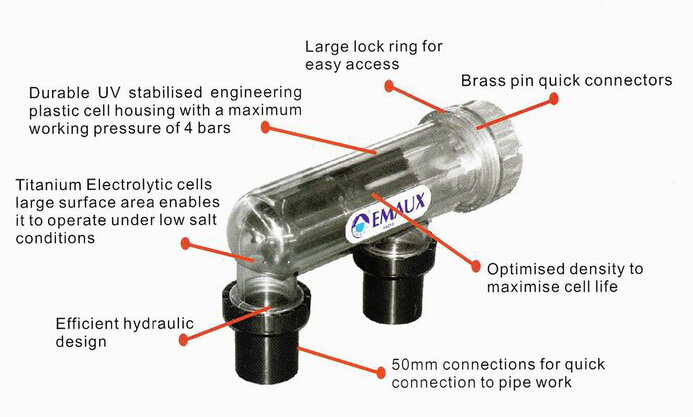

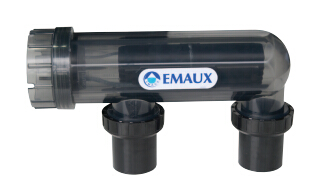

5. SSC Salt Cell:
The SSC's salt cell consists of a series of titanium electrodes with opposite charges. SSC's transparent salt cell housing allows visual inspection of the salt cell plates and enables monitoring of chlorine production.

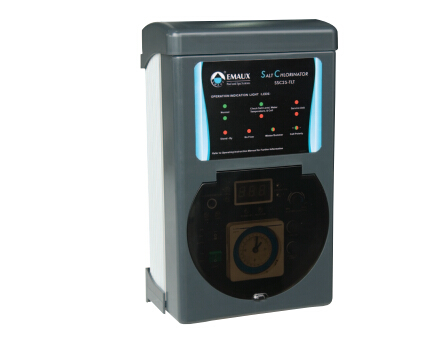

6. Power Supply:
- Power supply enclosed in an UV&weatherproof enclosure.
- Unit runs cool through design&innovation.
- Displays are clear&easy to operate.
- Time clocks complete with Battery Backup.

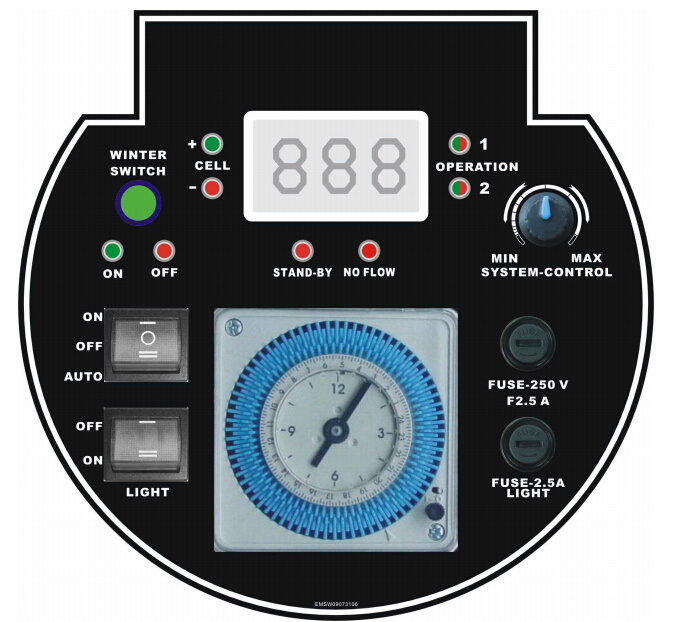

7. SSC-TLT Chlorinator display shown (Options):
Selecting a suitable unit.
A number of factors will affect the selection of a salt water chlorinator.
- Size of pool.
- Bather load.
- Size & Turnover rate of filtration system.
- Climate conditions.
- See table below for general guide to choosing correct model.
|
