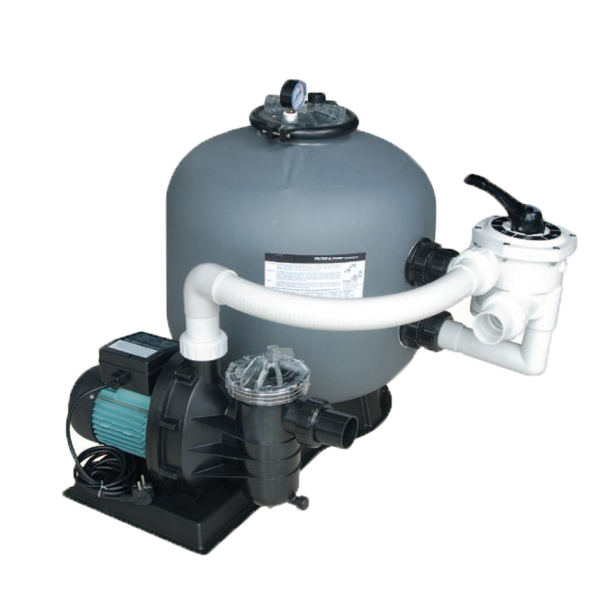

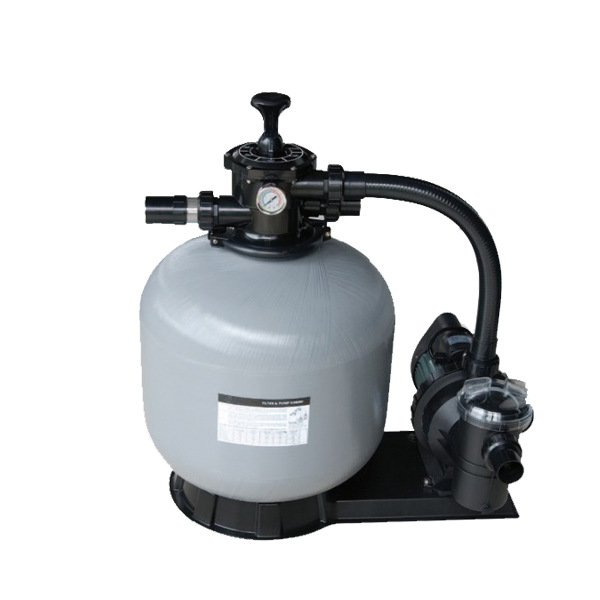

swimming pool sand filter
I Features:
1. fiberglass filter sank
2.6-way multi-port valve
3.Oil pressure gauge
II Functions:
1. maximum working pressure: 250kPa/36psi/2.5bar
2. factory testing pressure: 400kPa/58psi/4.0bar
3. size of silica sand: 0.5-1.0mm
4. maximum filtration velocity: 50cbm/h/sq
5. maximum water temperature: 43 degree
III
|
FSF350-6W
|
V350 Filter(¡é350mm/14''), SS033 Pump(0.33hp )
|
|
FSF400-6W
|
V400 Filter (¡é400mm/16''), , SS050 Pump (0.50hp )
|
|
FSF450-6W
|
V450 Filter (¡é450mm/18''), , SS075 Pump (0.75hp )
|
|
FSF500-6W
|
V500 Filter (¡é500mm/21''), , SC100 Pump (1.00hp )
|
|
FSF650-6W
|
V650 Filter (¡é650mm/25''), , SC150 Pump (1.50hp )
|
|
|
|
|
FSF500-6W
|
V500 Filter (¡é500mm/21''), , SC075 Pump (0.33hp )
|
|
FSF650-6W
|
V600 Filter (¡é650mm/25''), , SC100 Pump (1.00hp )
|
Pictures
|
